Projection-Space Calibration and Coherent Lowpass Field Lifting
Scientific Report 7: The Phase F Ladder (F0–F3b, F1b)

Study ID R7 / Phase F. Incoming baseline: PE-2c and the regional calibration wall from Report 6. Changed factor: make the Niño-3.4 projection explicit through calibration, analogs, conditional variance, and lowpass lifting — no retraining of the generator. Evidence tier: repeatedly consulted validation with LOYO fitting; no test access. Outgoing diagnosis: temporal and flow-aware structure must move into the generator (Report 8); the calibration and lifting machinery built here is reused downstream unchanged. Timeline: 2026-07-10; budgets waived, every rung ledger-predeclared.

Report 6 established that a spatially structured generative ensemble around the frozen PB-1 mean still under-disperses the Niño-3.4 index, across head family, loss, sampler, and a 64-fold data increase — the wall is architectural in the sense that the generator does not place enough variance in the modes that survive a box average. Phase F attacks the projection directly. The Niño-3.4 index is one linear functional of the 37-channel coefficient tensor; nothing in the generator gives gradient or sampling pressure to that direction specifically. Three questions organize the ladder:

1. Where does PB-1's index error live, by scale, and where does the current ensemble spread live? (F0)
2. Do the existing member ranks contain calibratable information — i.e. does inflation plus rank-preserving remapping reach nominal reliability? (F1)
3. Can climate simulations identify state-dependent coherent-mode variance that transfers to observations? (F2, F3)

A discipline governs all fitting: 35 overlapping validation windows overfit easily, so every fitted parameter is fit and scored under LOYO by context-start year (2011/2012/2013), with gate metrics pooled over held-out folds only. Table 1 maps each rung to the question it answers.

Phase F is a disciplined application of ensemble post-processing to one aggregated functional. Ensemble model output statistics (EMOS / non-homogeneous Gaussian regression) correct bias and dispersion with few parameters [1]; ensemble copula coupling (ECC) and its dependence-preserving variants reorder calibrated marginals by the raw ensemble ranks, retaining lead-to-lead structure [2]. Analog ensembles provide state-conditioned members by retrieval [3]. Conditional heteroscedastic models predict $\sigma(\text{state})$ [4], and conformal methods offer distribution-free coverage as a fallback [5]. The specific warning the external review raised — that direct multivariate seasonal calibration can look excellent in-sample and vanish in cross-validation for lack of data relative to parameters — is exactly why the design is deliberately low-parameter and LOYO-blocked; operational seasonal systems variance-correct Niño-3.4 indices with restrained statistical models rather than flexible neural calibrators, treating the regional index as a special calibration target rather than a quantity that emerges correct from a field ensemble. Each rung below tests one recommendation from that review.

Three LOYO folds hold out context-start years 2011, 2012, and 2013 in turn (fold sizes 12/12/11 windows); leads 3–14 define the index headline scope. Fair CRPS is scored per window and lead over the member axis. A recorded defect governs all CRPS reading in this report: the archived projection scorer reshaped $[\mathrm{window},\mathrm{member},\mathrm{lead}]$ arrays without moving the member axis last, mixing leads and members; spread, coverage, and deterministic metrics are unaffected, but every Phase F CRPS value must be canonically recomputed before its magnitude is retained. These values are also not interchangeable with the all-lead legacy probabilistic evaluator's CRPS. Where a CRPS number appears below it is the archived value, labeled as such.

$24\times48$ tropical Pacific; 12/14-month geometry; train 1981–2010; validation 2011–2015 (35 windows); no 2016–2020 access; cosine-weighted Niño-3.4 box; persistence and zero-anomaly baselines; 32 members. Calibration headlines restrict scoring to leads 3–14.

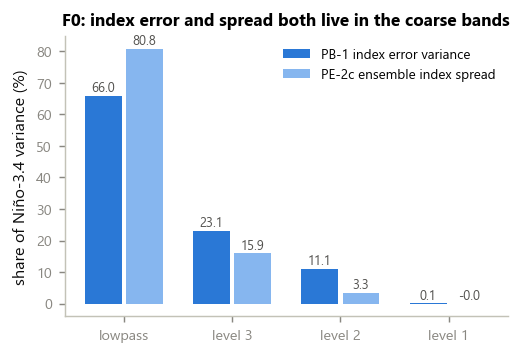

Band-limited inverse DTCWT decomposes the PB-1 error field (truth minus mean head) and the ensemble correction fields into lowpass and highpass levels 1–3, and the Niño-3.4 index of each band-limited component is taken. Writing the index error variance as a sum of band contributions,

the measured shares are 66% lowpass, 23% level 3, 11% level 2, 0.1% level 1 — $89\%$ in the two coarsest bands, verifying the scale-routing premise (Fig. 1). The ensemble's index spread is already $81\%$ lowpass. So the failure is not band mis-allocation at the index level: the ensemble puts its index spread in roughly the right band. The deficit is the amplitude and the case-dependence of that coherent lowpass mode. F0 carries no gate; it scopes every design downstream.

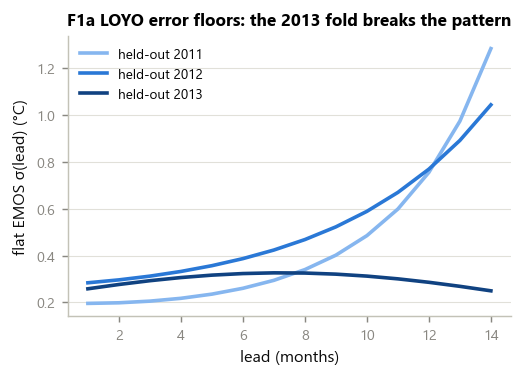

The predictive model for the index deviation at lead $\ell$ is Gaussian with a lead-smooth error floor,

with $P_d$ a low-degree polynomial in lead ($\le3$ effective parameters) and $b$ an optional dependence on raw ensemble spread ($b=0$ first, $b>0$ second). Members are reconstructed by rank-preserving Gaussian-quantile remapping (ECC-Q, Eq. 9 of the series charter): each member keeps its per-lead rank, its deviation becoming $\sigma(\ell)\,\Phi^{-1}((k-\tfrac12)/M)$, recentered exactly so the index ensemble mean equals PB-1's.

At $b=0$: spread–skill $\mathbf{0.401\to0.964}$ (in band), coverage $56/77/81\%$ (all within 10 points of nominal), exact mean identity — but archived fair CRPS worsens, $0.245\to0.270$ ($+10\%$) for PE-2c. Three of four gates pass; the CRPS gate fails, pending canonical recomputation. Crucially, $b=1$ is nearly indistinguishable from $b=0$ in the preserved diagnostics, and the correlation between $\lvert$index error$\rvert$ and raw spread across windows is only $0.05$–$0.13$: the raw ensemble spread is a flow-independent constant ribbon ($0.198/0.200/0.198$ by fold) while fold RMSE swings $0.246\to0.758$ through the 2015-event fold (Fig. 3). Climatological inflation ($\sim2.5\times$) therefore fixes average reliability but over-widens quiet folds and still under-covers the event fold — exactly the small-case- dependence effect the external review warned about. Per the predeclared interpretation rule, the ensemble lacks flow-dependent coherent-mode uncertainty, so F3 becomes mandatory rather than optional.

Each observed initialization is represented by a compact standardized state (12-month Niño-3.4-3.4/-3/-4 context trajectories); candidates are season-matched on context-end calendar month across all 14 CMIP stores; per-model top-$k{=}3$ nearest neighbors (Euclidean, per-model ENSO-amplitude standardized, $\ge12$-month separation) give a 42-member, model-balanced ensemble; analog future 14-lead index deviations are recentered across the ensemble, rescaled by the observed context $\sigma$, and added to the PB-1 index trajectory (mean preserved exactly). The predeclared signals: raw analog spread–skill $>0.65$ would show the CMIP archive contains usable conditional uncertainty; corr($\lvert$error$\rvert$, spread) materially above $0.05$–$0.13$ would show analogs supply the missing flow dependence.

Outcome. Signal 1 met: raw spread–skill $0.738$ (the best uncalibrated value in the project; respectable raw coverage $51/76/82\%$) — the archive does contain conditional uncertainty. Signal 2 not met: corr($\lvert$error$\rvert$, spread) $=0.087$, no better than the diffusion ensembles — forced $k$-per-model retrieval makes ensemble width reflect the model pool's climatological diversity, near-constant across windows, not state-conditional uncertainty. LOYO-calibrated ($b=0$): spread–skill $0.972$, $3/4$ gates, archived CRPS again fails ($0.294$ vs raw $0.281$); $b=1$ over-disperses ($1.206$). The synthesis after F1a+F2: average reliability is cheaply solvable but the CRPS gate fails identically in every ensemble because the singular remaining deficit is flow dependence.

The design consequence of F0–F2 is to model $\sigma(\mathrm{state},\ell)$ explicitly, with CMIP informing amplitude and observations supplying only a tiny adaptation. A conditional log-variance model is fit by model-balanced OLS on $\sim$380k rows of CMIP persistence-error pairs (persistence error being the observable CMIP proxy for a persistence-residual forecast's error):

with $\lvert s_0\rvert$ the per-model-standardized context-end Niño-3.4 amplitude, $\tau_6$ the 6-month context tendency, and $m$ the target calendar month (spring-barrier seasonality). Observed adaptation is one scale $c$ per LOYO fold, $c^2 = \langle e^2/\sigma^2_{\mathrm{CMIP}}\rangle_{\mathrm{fit}}$; members are reconstructed with ECC-Q driven by $c\,\sigma_{\mathrm{CMIP}}(\mathrm{state},\ell)$; the PB-1 mean is fixed exactly.

Stage 1 gates observed use on CMIP generalization. On the three held-out models the conditional model beats the lead-only baseline by $+0.185$ Gaussian log-score with rank correlation $0.431$ between predicted $\sigma$ and $\lvert$error$\rvert$. The learned physics is sensible: $\hat\beta_{\lvert s_0\rvert}=+0.25$ and $\hat\beta_{\lvert s_0\rvert\times\ell}=+1.28$ (larger initial ENSO state $\to$ larger error, growing with lead), with active seasonal terms. State-conditioning of persistence-forecast error is learnable from CMIP; proceed to observations.

Stage 2, three of five gates: spread–skill $\mathbf{1.089}$ (pass), coverage $60/83/90\%$ (pass; 90% exactly nominal), mean identity exact (pass); archived fair CRPS $0.2645$ vs raw $0.2450$ (fail, though better than flat F1a's $0.2700$ — conditioning recovers $\sim$20% of the flat cost); flow dependence $\mathbf{0.160}$ (fail vs the $0.30$ target, though $2$–$3\times$ every prior ensemble's $0.05$–$0.13$). The per-fold observation scales are $0.90/1.02/0.80\approx1$: the CMIP-standardized persistence-error magnitude transfers to PB-1's observed errors nearly one-to-one, validating the proxy.

The named ceiling. Predicted $\sigma$ varies $0.12$–$1.83$ across windows (33% variation) yet flow dependence tops out at $0.160$ — in significant part because the 2013-start contexts preceding the 2014–15 event ramp were near-neutral states (the famously unforecastable 2014 “failed El Niño” transition), so $\lvert$initial state$\rvert$ genuinely under-predicts those errors on this three-year slice. Higher flow dependence may simply be unidentifiable here without richer precursors — a new predeclared variant, not a tweak. This is the best-balanced probabilistic index product to date, not adopted under the strict gates.

Five added SST-index precursors (zonal gradient $\mathrm{nino4}-\mathrm{nino3}$, absolute gradient, gradient tendency, context volatility, and interactions — all computable identically on CMIP and observations, no subsurface data) were tested at stage 1 against the F3 base. The gate is a clean vs-base comparison on held-out CMIP. Result: the full 14-feature log-score is $1.0495$ versus the 9-feature base's $1.0364$ (i.e. worse) with rank correlation $0.428$ vs $0.431$ — the added surface features fit within-model idiosyncrasies rather than transferable physics. Stage 2 (observations) was correctly never run per the predeclared rule. The F3 nine-feature $\sigma$ stands; genuinely new information (subsurface OHC/WWV) would be the next candidate precursor class, carrying the Report 5 observed-transfer caveat.

The calibrated index change is lifted back into member fields through a leadwise basin pattern $B_\ell$ — a ridge regression ($\lambda = 0.1\,\langle q^2\rangle$) of fit-fold PB-1 error fields on their Niño-3.4 residuals, band-limited to the DTCWT lowpass band and normalized to unit Niño-3.4 average $A(B_\ell)=1$ — applied to the zero-member-mean deviation difference:

Because the lifted quantity has zero member mean, the ensemble-mean field is invariant by construction; because $B_\ell$ is lowpass and unit-normalized, member indices reproduce the calibrated values exactly and highpasses are preserved. Results: index fidelity max error $0.00000\,{}^{\circ}\mathrm{C}$; ensemble-mean field invariant to $1.5\times10^{-7}\,{}^{\circ}\mathrm{C}$; highpass band-energy changes $0.3$–$2.0\%$ ($<5\%$ gate; lowpass $+19.4\%$, where the calibrated spread intentionally lives); member std ratio (P4b) $0.652\to\mathbf{0.787}$. Three of four gates pass. The declared-failed gate — member std change $<0.05$ — is triggered precisely because the calibrated $\sim2.5\times$ index spread materializes in the fields (the lift's purpose), landing inside the sharpness target $[0.7,1.3]$; its small-perturbation premise is incompatible with conditional-$\sigma$ inflation, so the “failure” is an improvement on the sharpness metric, recorded without changing the gate. An implementation note of record: the first version lifted $q'-q$ directly and shifted the mean field up to $0.43\,{}^{\circ}\mathrm{C}$ because the raw ensemble-mean index drifts from PB-1's; the corrected v2 lifts only the deviation difference, restoring exact mean invariance and leaving the small raw-mean offset in the mean (where PE-2c's raw ensemble mean is the better point forecast).

Calibration diagnostics of record: F3 per-fold scales $0.90/1.02/0.80$; mean-identity errors at machine precision throughout; predicted-$\sigma$ variation $0.12$–$1.83$; sigma–$\lvert$error$\rvert$ correlation $0.160$; F1b lifting integrity as above. X4: no new checkpoint (inference-only post-processing of PE-2c 8ad14ac0…); artifacts phase_f_f0_band_decomposition.json, phase_f_f1a_pe2c_b0.json, phase_f_f2_analog_baseline.json, phase_f_f3_conditional_calibration.json, phase_f_f3b_conditional_calibration.json, phase_f_f1b_lifted_members.json; LOYO folds throughout; test_data_read: false.

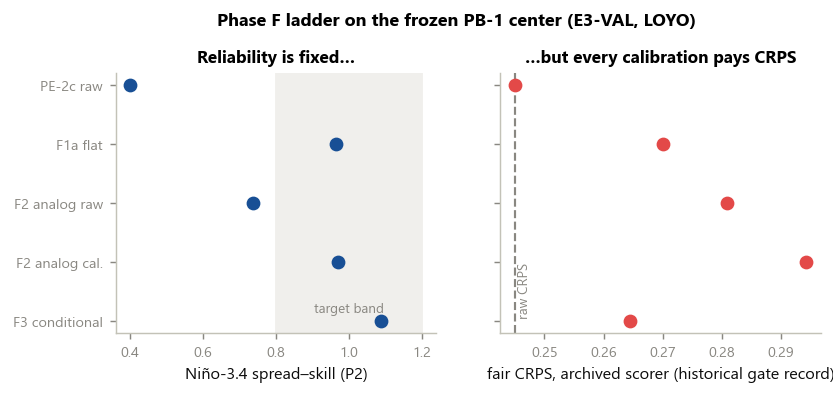

F1 fixes average reliability; F2 provides broader raw spread but without state dependence; F3 transfers conditional physics from CMIP but remains too weak on the observed slice (0.160 vs 0.30); F3b adds no transferable signal; and F1b successfully constructs the field product. The through-line is one deficit, measured five ways: flow dependence. Any flow-independent width that fixes average coverage necessarily over-widens quiet periods and under-covers events, so the CRPS gate fails identically across F1a, F2, and F3. Every CRPS-dependent gate must be rechecked after canonical recomputation; that audit is distinct from the historical decision, under which no F variant cleared every strict gate and PB-1 remained the adopted deterministic model at this phase.

The report separates two calibration goals that the field often conflates: average reliability (fixed cheaply, by any inflation) and resolution / flow dependence (the hard part, requiring spread that tracks the state). CRPS penalizes the second failure even when the first is solved, because mean error enters CRPS and event windows dominate it. Event-fold influence is severe here: one three-year slice contains essentially one event ramp, grown from neutral states, so the very windows that most need wide spread are the ones the available precursors least predict. The constructive implication — and the explicit handoff to Report 8 — is that a generator modeling joint lead structure may improve both the conditional mean and the coherent low-mode uncertainty before calibration, changing the terms of the trade. The Phase-F-era “$\sim$0.22 ceiling” on flow dependence is therefore feature-, center-, seed-, and estimator-specific, not a universal constant; Report 8's canonical G2-long raw flow dependence ($+0.354$) is measured on a different center and reported separately.

Only three LOYO folds; repeated validation use (budgets waived); strong-event leverage (the 2015 ramp dominates the event fold); simple linear $\sigma$ features; analog dependence among CMIP models; raw-spread weakness (F1a $b{=}0\approx b{=}1$); calibration-estimator uncertainty; and no test access within Phase F. Report 8 later tests the validation-fit flat calibration unchanged as one component of the amended G2-long read. The archived lead/member-axis CRPS defect touches every CRPS number in this report; a frozen corrected-score artifact is required before any magnitude is quoted as P1.

Phase F hands forward the explicit Niño-3.4 calibration and lifting machinery (EMOS/ECC-Q; the CMIP-fit conditional $\sigma$; the lowpass unit-index lifting pattern) — all reused unchanged in Report 8 — and the sharpened diagnosis that flow-independent spread is the remaining wall. The next hypothesis follows directly: a joint sequence generator with direct temporal and coarse-band objective pressure may learn better mean trajectories and state-dependent corrections, moving flow dependence into the generator where post-hoc calibration could not manufacture it.
